Car :: Could Your EV Charge Without a Cable? A Look at Wireless Charging Technology

Hello everyone.



Today's post is about wireless EV charging technology.

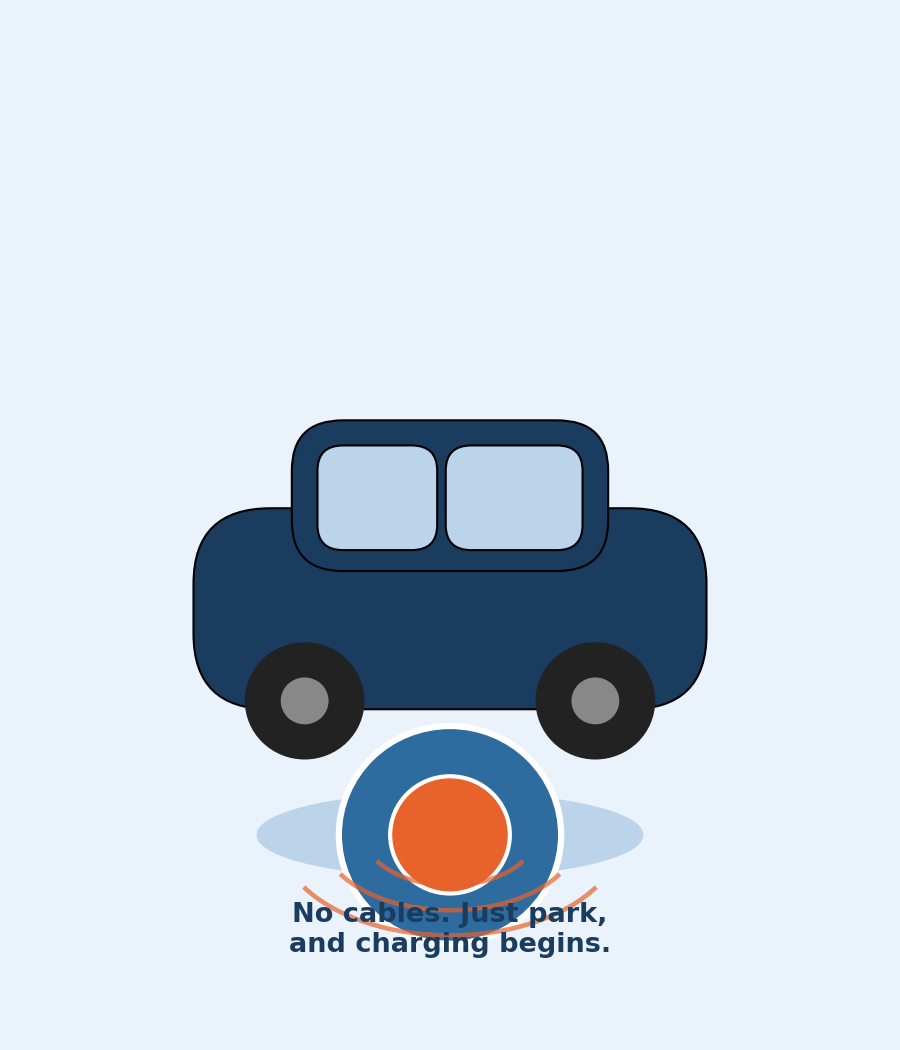

What if your car finished charging just by being parked? No plugging, no unplugging, no cable at all — just pull into a spot and the battery starts filling up on its own.



As someone who develops charging systems for electrified equipment, I've been keeping a close eye on how far wireless charging has actually come. So today I wanted to lay out where things stand.



When most people think of EV charging, they picture plugging a cable into a home or fast charger. Wireless charging removes that cable entirely, which is why it's considered one of the technologies that could most change the everyday charging experience.



How Does Wireless Charging Actually Work?



EV wireless charging relies on inductive power transfer. A transmitter coil embedded in the ground generates a magnetic field, and a receiver coil mounted on the underside of the vehicle converts that field back into electricity.

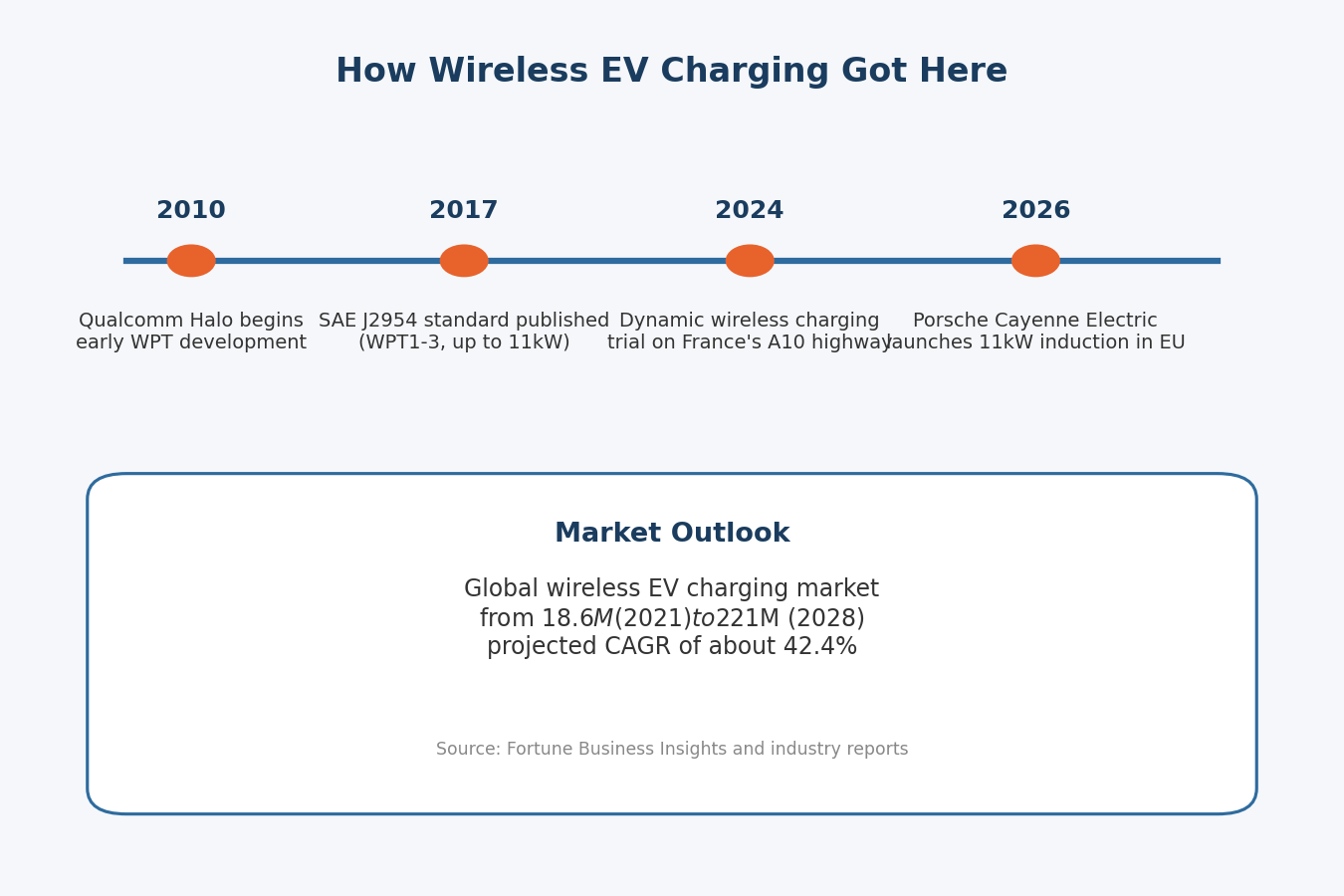

The industry standard behind this is SAE J2954. First published in 2017, it defines three charging speed classes for passenger vehicles: WPT1 (3.7kW), WPT2 (7.7kW), and WPT3 (11kW).



Efficiency is better than you might expect. Over an air gap of roughly 250mm, the system can reach up to 93-94% transfer efficiency. That's slightly below wired fast charging (95%+), but reaching this level without any physical connection is still a meaningful achievement.



That said, efficiency drops off quickly if the transmitter and receiver coils aren't well aligned, so alignment systems — such as differential inductive positioning — are being developed to help drivers park in exactly the right spot.



From Static Charging to Dynamic Charging



Wireless charging generally falls into two categories. The first is static wireless charging — the version most people picture, where a coil is embedded in a parking spot and charging begins the moment you park.



The second is dynamic wireless charging, where coils are embedded directly into the road so a vehicle can charge while driving. If this becomes widespread, range anxiety could theoretically shrink dramatically.



In France, a dynamic wireless charging system developed by Electreon, with custom SiC power semiconductors supplied by Infineon, was installed as a pilot on the A10 highway. It became the world's first dynamic wireless charging trial aimed at commercial vehicles like mid- and heavy-duty trucks and buses.



Dynamic charging does require embedding coils and power infrastructure across entire road stretches, which means high upfront costs, and international standardization is still at an early stage. Static wireless charging, being far simpler to install, is the version reaching commercial vehicles first.



How Close Is This to Reality?



Automakers are pushing wireless charging toward commercialization. Porsche plans to offer an 11kW inductive wireless charging system as an option on the 2026 Cayenne Electric, launching first in Europe before expanding to other markets.



There's movement in Korea too — industry watchers expect KG Mobility to bring wireless charging to market as early as 2026. Reports suggest the system planned for domestic rollout will include object and living-being detection features, adding a safety layer alongside the convenience.



The market outlook backs this up. One industry research estimate puts the global wireless EV charging market at roughly $18.6 million in 2021, growing to about $221 million by 2028 — a projected CAGR of around 42.4%.



From where I sit as someone building charging systems, wireless charging is about far more than convenience. It's a technology area that has to account for power conversion efficiency, electromagnetic compatibility, and foreign-object detection all at once. Looking further ahead, I think the same wireless concept could eventually extend beyond passenger cars to industrial electrified equipment like electric excavators or wheel loaders — which is exactly why I'm personally keeping an eye on where this goes.
